MAXX MODEL - Gruppo Hop Up M4I - PRO in Alluminio CNC per M4/M16 ICS (MX-HOP010MI)

MAXX MODEL
VERSIONE MIGLIORATA PER ICS!!!

Gruppo Hop Up M4I- PRO Maxx Model.

In alluminio, con lavorazione CNC.

Ghiera di regolazione trasversale, di massima precisione.

Predisposizione per illuminatore led.

Per serie M4 / M16 ICS

DESCRIPTION

REVIEWS (0)

SHIPPING METHODS
Product Description
CNC Aluminum Hopup Chamber M4i Pro (with BB Latching System) unit is precisely machined to perform accurately and consistently on ICS CXP/CS4/EBB (include old models) M4/M16 AEG series.
The Hopup Chamber M4i unit is built with an aluminum Rotary Dial Knob for fine hopup adjustments, the precision Hopup Lever and 4mm Bucking Nubs (6mm Bucking Nubs are optional) to perform best with R-Hop and Standard-Hop to keep the BB shooting accurately and consistently on every single shot.
The Hopup Chamber M4i unit is designed to accept 21.00mm to 21.25mm nozzle length, and fully compatible with most aftermarket soft and hard rubber buckings without losing FPS or dropping BB during use.
The Hopup Chamber M4i unit is wisely equipped with an interchangeable Inlet Adaptor OD12mm to ensure the hopup unit is inserted exactly in the center of the 12mm inner bore ICS AEG Gearbox nozzle outlet without wobbling. (Inlet Adaptor OD11mm and OD11.5mm are optional)
Also mounted the removable CNC Brass Side Wings to slide smoothly into the outer barrel slots, and included an advanced CNC Delrin Locking C-Clip to hold the inner barrel tight in place without wobbling and twisting.
More than that, the Hopup Chamber M4i Pro unit is specially designed with a new BB Latching System to prevent BB dropping after removing the magazine. The Latching Arm can also be manually pressed to release the remaining BB from inside the hopup chamber.

***The Dual UV LED Tracer Module is an add-on option to glow BB in the dark. Operating Voltage from 7VDC - 15VDC (2-4 cells LiPo, 6-13 cells NiCad). (Sold separately)
***Test results: FPS might be increased from 10FPS to 30FPS over the stock setup. Please check your FPS!

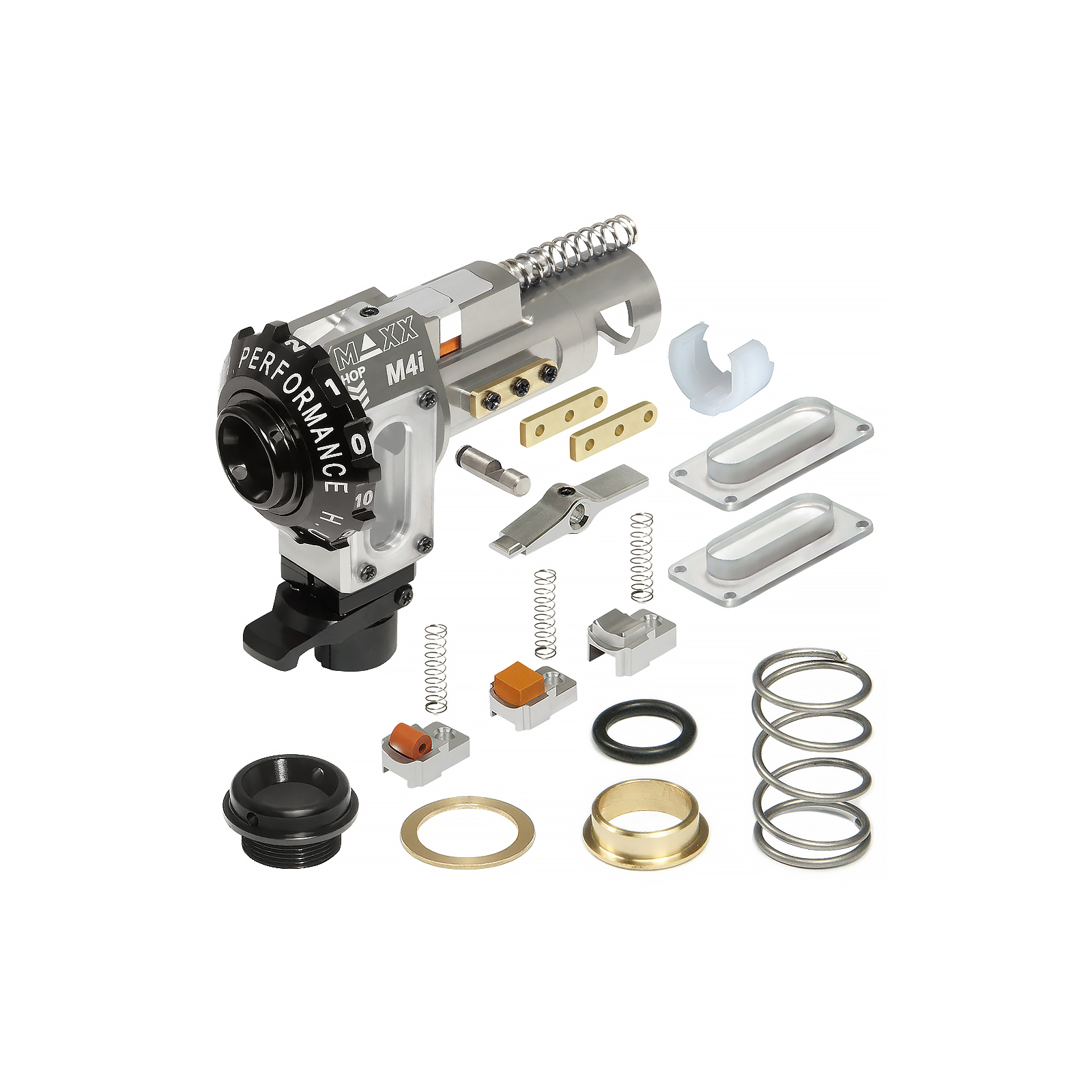

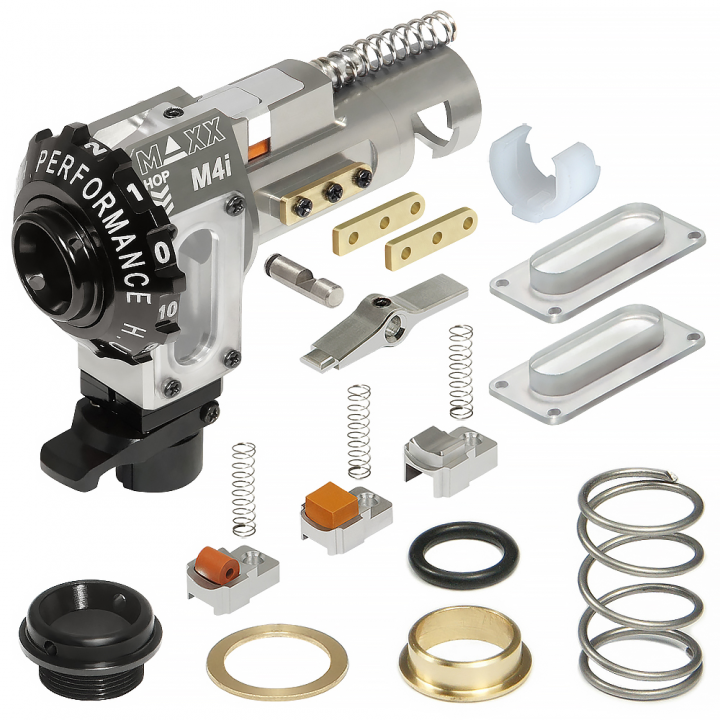

     Includes
    1 x CNC Aluminum Hopup Chamber M4i Pro (with BB Latching System) unit
    2 x CNC Acrylic Side Cover
    2 x CNC Brass 2.9mm Side Wing
    1 x CNC Steel Pivot Pin
    1 x CNC Aluminum Hopup Lever
    1 x CNC Aluminum Soft Round Nub
    1 x CNC Aluminum Soft Flat Nub (4mm)
    1 x CNC Aluminum Hard Concave Nub (4mm)
    3 x Steel Nub Spring
    1 x CNC Steel Spring Guide
    1 x Steel Upper Compression Spring
    1 x Steel Center Compression Spring
    1 x CNC Delrin Locking C-Clip
    1 x CNC Brass Barrel Spacer
    1 x Brass Barrel Spacer Holder Oring
    1 x CNC Aluminum Rotary Dial Knob
    1 x CNC Aluminum Inlet Adaptor (OD12mm)
    1 x CNC Brass Inlet Spacer


     Specification
    Overall Length: 51.65mm
    Overall Height: 38.75mm
    Inlet Adaptor Outer Diameter (to fit into Gear Box): 12mm
    Hub Outer Diameter (to fit into Outer Barrel): 12mm
    Hub Inner Diameter (to fit Nozzle): 8mm
    Feeder Outer Diameter (to fit magazine): 8.85mm
    Feeder Length (to fit magazine): 6mm
    Material: Aluminum 6061


     Features
    Machined from a solid aircraft aluminum block with tight tolerances to achieve the most accuracy, consistency, and durability
    Performed accurately and consistently on ICS CXP/CS4/EBB (include old models) M4/M16 AEG series
    Precision Rotary Dial Knob for fine hopup adjustments
    Re-engineered the precision Hopup Lever and 4mm Bucking Nubs (6mm Bucking Nubs are optional) to perform best with R-Hop and Standard-Hop to keep the BB shooting accurately and consistently on every single shot
    Removable Steel Pivot Pin for ease of setup and maintenance
    Accepted 21.00mm to 21.25mm nozzle length
    Fully compatible with most aftermarket soft and hard rubber buckings without losing FPS or dropping BB during use
    Wisely equipped with an interchangeable Inlet Adaptor OD12mm to ensure the hopup unit is inserted exactly in the center of the 12mm inner bore ICS AEG Gearbox nozzle outlet without wobbling. (Inlet Adaptor OD11mm and OD11.5mm are sold separately)
    Mounted the removable CNC Brass Side Wings to slide smoothly into the outer barrel slots
    Included an advanced CNC Delrin Locking C-Clip to hold the inner barrel tight in place without wobbling and twisting
    Equipped with 2 compression springs on top and center to ensure the hopup unit is seated straight and air tight during use
    Specially designed with a new BB Latching System to prevent BB dropping after removing the magazine
    The Latching Arm can also be manually pressed to release the remaining BB from inside the hopup chamber
    Compatible with any 12mm inner bore ICS AEG Gearbox nozzle outlets
    The Dual UV LED Tracer Module to glow BB in the dark ready!


     Weight
    N/A grams


     Usage
    Compatible with most ICS CXP/CS4/EBB (include old models) M4/M16 AEG series
